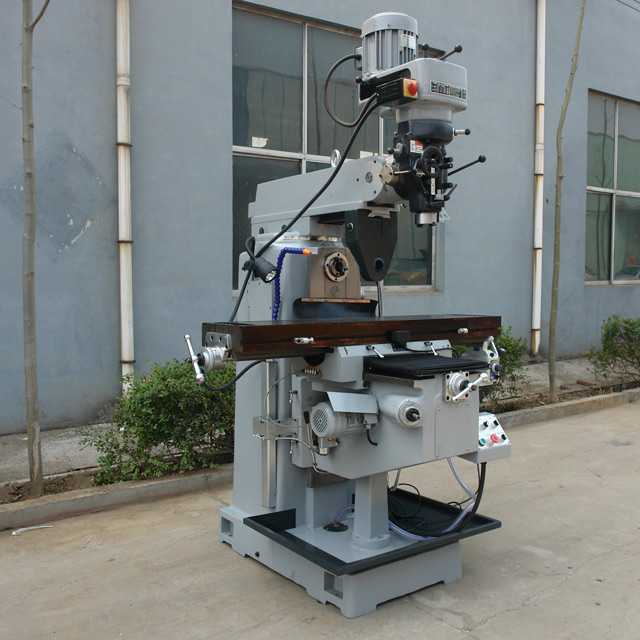

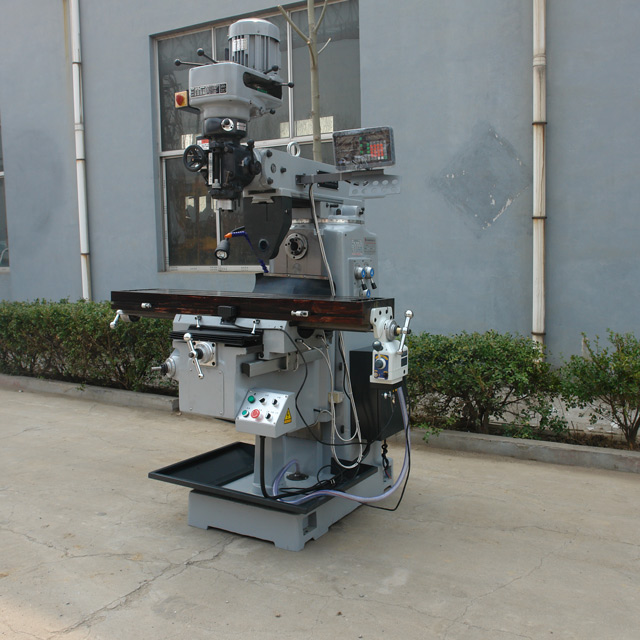

5H CNC turret milling machine Variable Speed Milling Head

Availability:
Quantity:
  • 5H

Product Description

5H Turret Milling Machine Universal Milling machine price

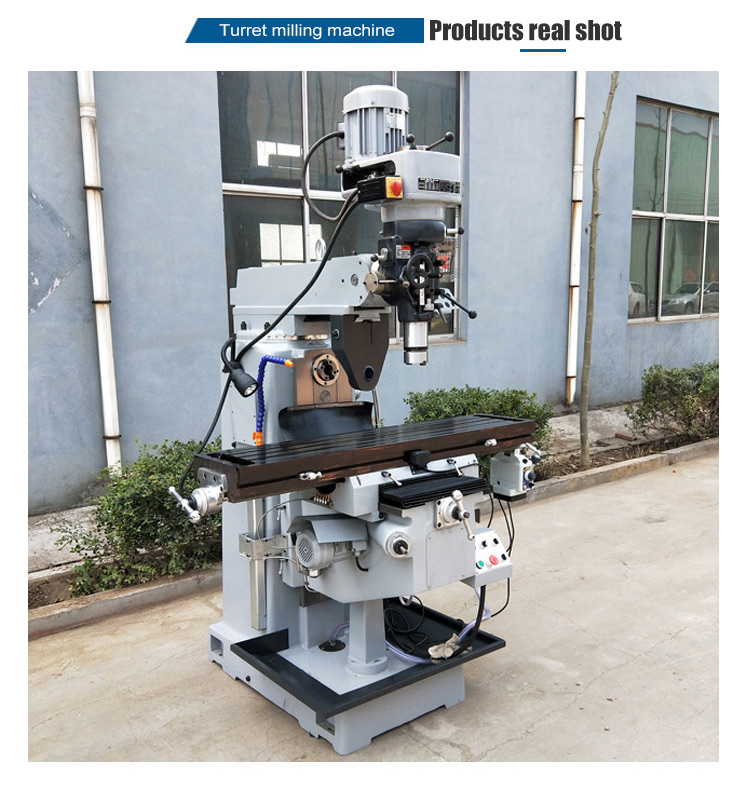

5HW炮塔铣床阿里详情_015HW炮塔铣床阿里详情_03

Product main technical Specifications:
Specifications
Units
5H
Table size
mm
1370x305(12”x54”)
Table travel
mm
810/ 400 /400
T slot(number-width-pitch)
mm
3-16-65
Spindle taper

standard: R8
optional: ISO40
Spindle speed range
rpm
standard:16 steps,50HZ:65-4500 ,60HZ:80-5440
Optional:variable 65-4000
Spindle travel
mm
127
Spindle feed range
mm
0.045,0.086,0.142
(3 steps)
Distance between spindle nose and table surface
mm
90-510
Main motor power
kw
2.2
Head rotation (left - right )
°
±90°
Head rotation (front - rear)
°
±45°
Weight
kg
1850
Overall dimension
mm
1780*1650*2080


FAQ

1. How can I choose the most suitable machines?
Please tell me your specifications, we can choose the best model for you, or you can choose the exact model.
You can also send us the product drawing, we will choose the most suitable machines for you.
2. What are the main products of your company?
We specialized in CNC Machining Center, Milling Machine, Drilling Machine, Lathe Machine, Sawing Machine, Presses and Shears, Shaping Machine, Slotting Machine, Gear Hobbing Machine, Air Forging Hammer, Surface Grinder, Universal Cylindrical Grinder and so on.
3. Where is our factory located?

Our factory is located in Tengzhou City, Shandong Province, China. You are warmly welcomed to visit us.

4. How long is the delivery time?
For standard machines, it would be around 30 days; For customized machines according to the client’s requirements, it would be a little longer.

5. How can I make the payment?

 We can make the deal online platform, you can pay by T/T or Credit card. You can also pay for my company's business bank account. You can also choose L/C or other ways.

6. What's the MOQ?
1 set. (Only some low-cost machines will be more than 1 set )
