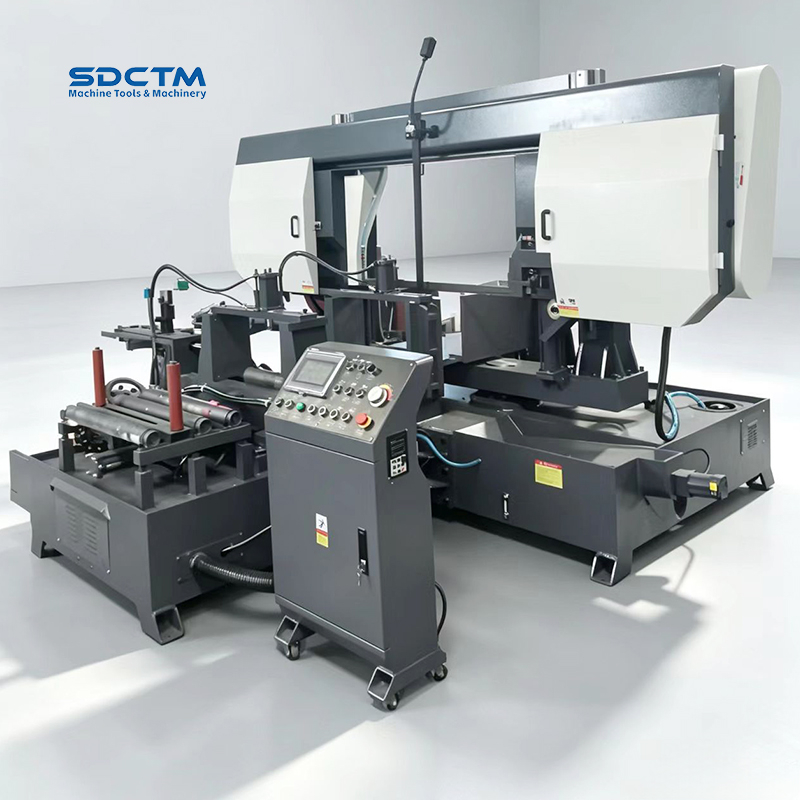

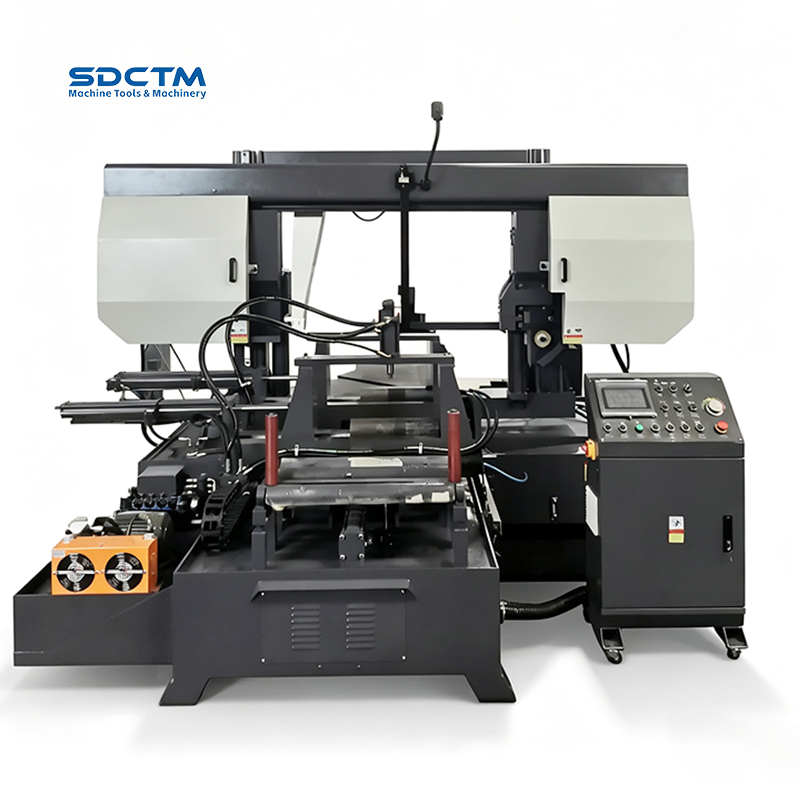

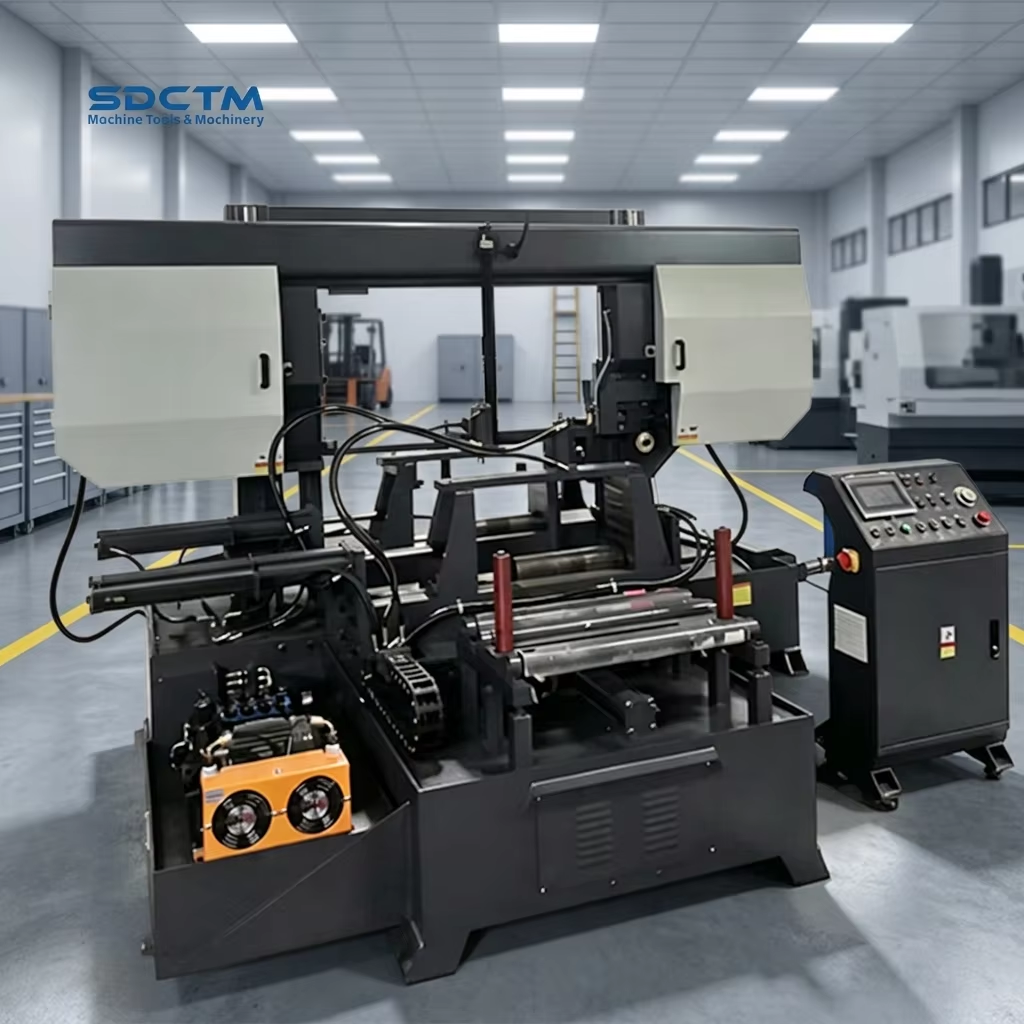

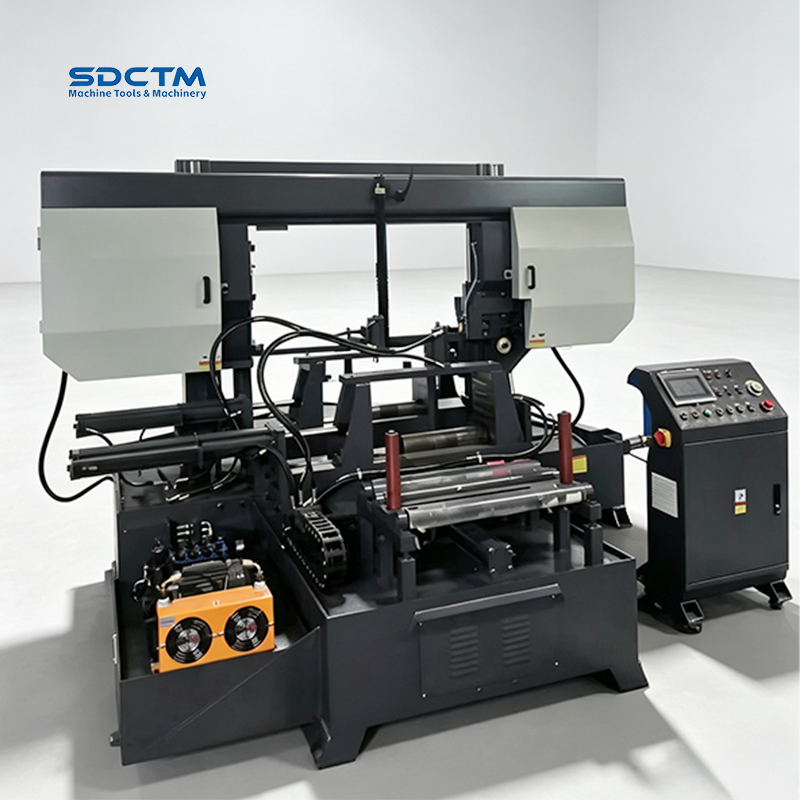

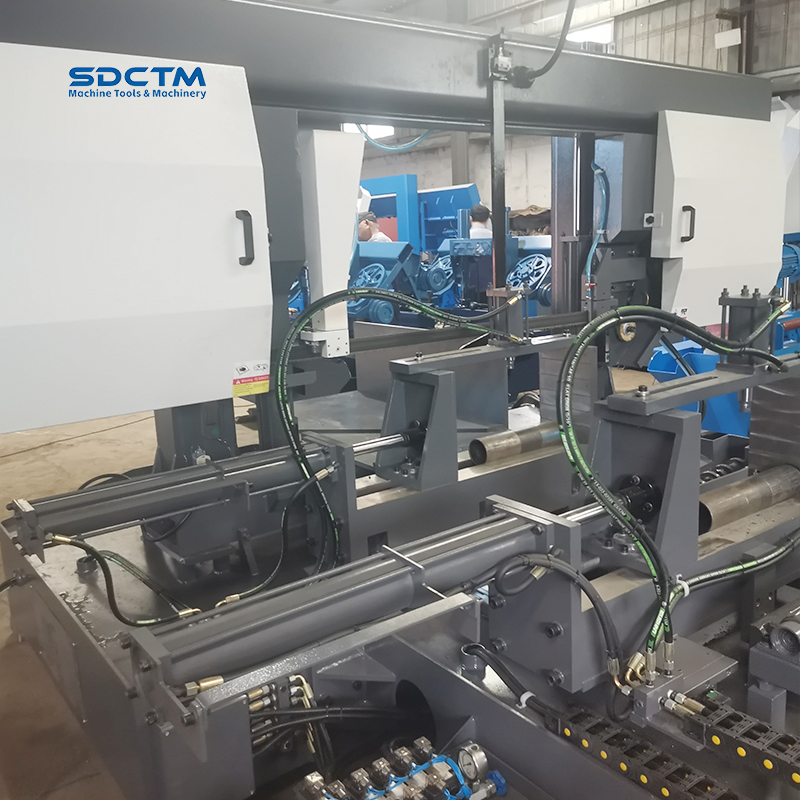

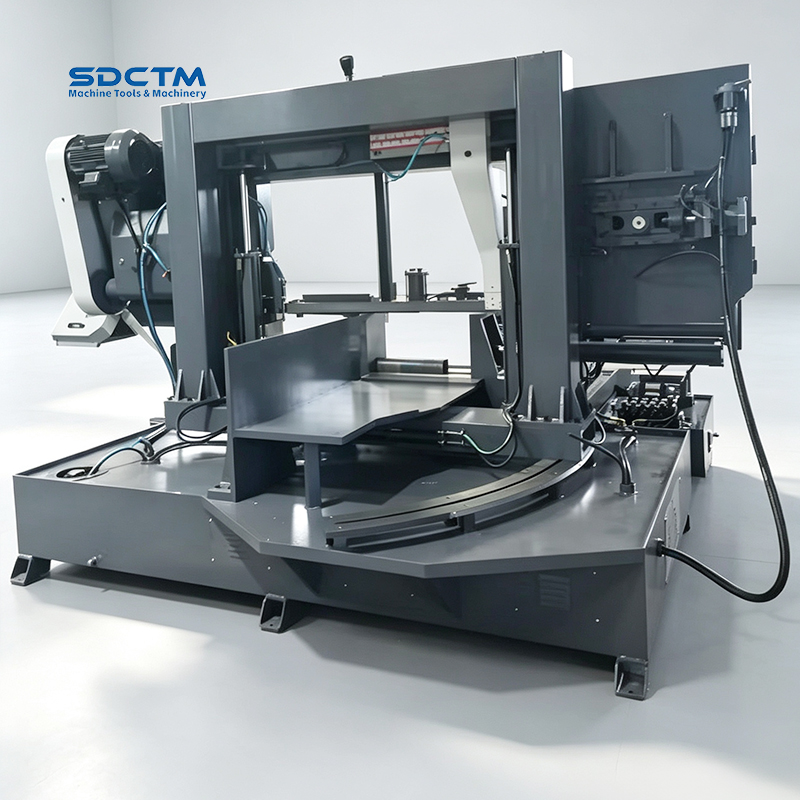

45 ° Angle Fully Automatic Metal Band Saw Machine Used for Sawing Round Steel And Square Steel GSK4260Z

Angle Metal Cutting Band Saw Machine
Miter Cut Angle Band Saw
Fully automatic corner metal band sawing machine
Metal cutting band saw.
Industrial metal band saw.
Hydraulic band saw.
Automatic band saw for steel.
Push button band saw.
Saw/cut range:
Availability:
Quantity:
  • GSK4260Z

  • SDCTM

Product Description


Item

GSK4260Z

Saw/cut range

0° :600*700 mm | 45° :600*500 mm

Saw/cut belt size

7350 x 54 x 1.6 mm

Saw/cut belt speed

27,45,69 m/min

Main motor

5.5  kw

Hydraulic motor

1.5 kw

Cooling pump motor

0.09kw

Machine operation mode

Automatic

Main transmission structure

Worm gear transmission

Machine clamping method

Hydraulic clamping

Overall dimensions

3800 x 3200 x 2800 mm

Overall Weight

3800 kg

Product Image

Product Details

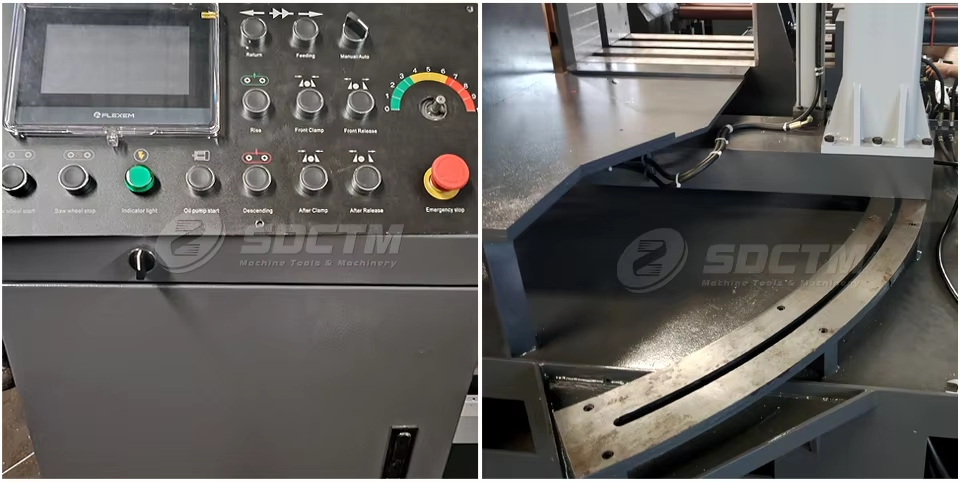

band saw16.png

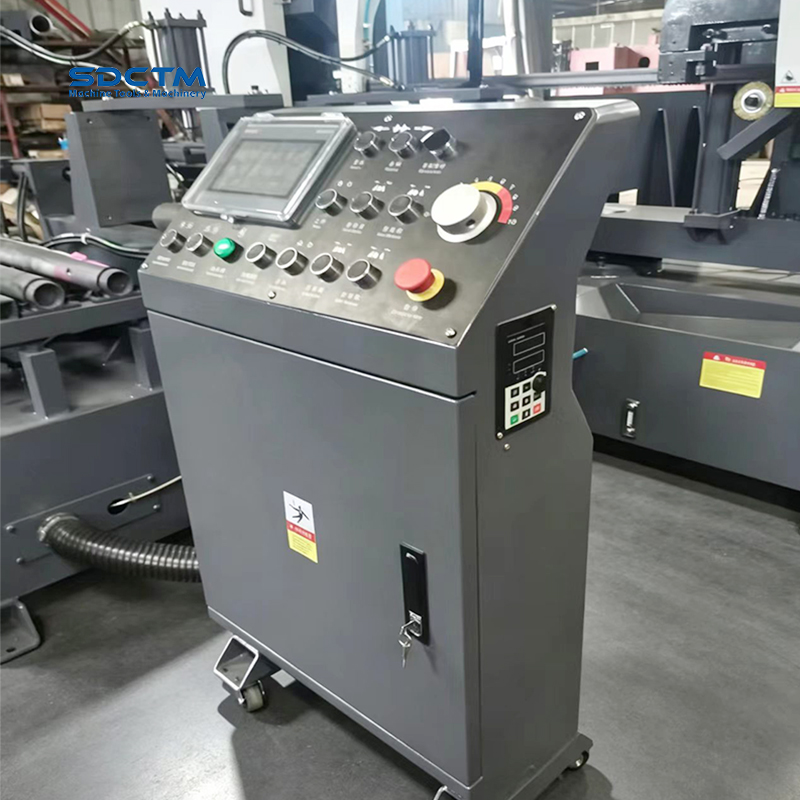

1. Multiple Operations :Using physical buttons and PLC touch screen layout, it can be manually operated or intelligently controlled.

2. Angle Cutting Saw : Achieve a tilt angle of 0-45 degrees (or greater)to meet the cutting requirements of workpiece.

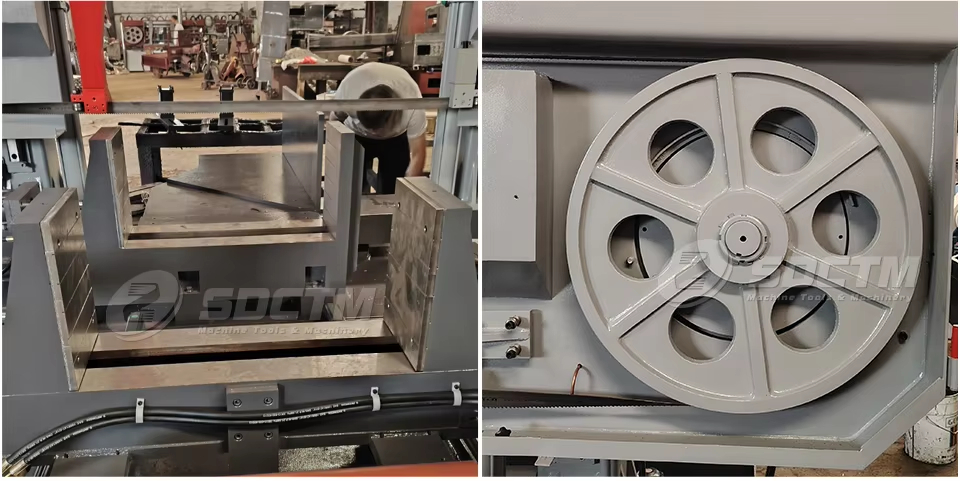

band saw17.png

3. Hydraulic Vice : Hydraulic clamping.Customizable in height, Option of either a handwheel or an oil cylinder.

4. Double Turbine Disc : It is made of cast iron, with high rigidity, stable operation, and improved sawing ability.

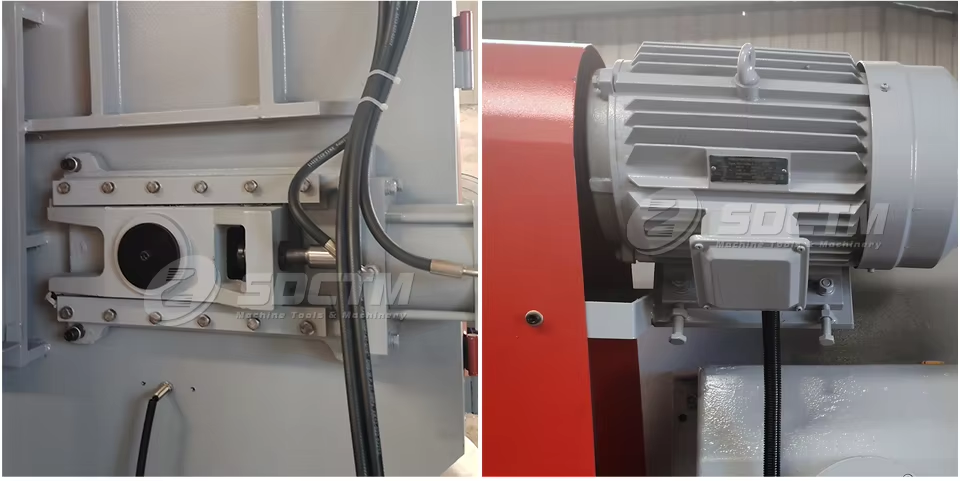

band saw18.png

5. Tensioning Device : Adjust the tension of the saw blade, ensuring cutting accuracy and stability. Standard manual, optional hydraulic.

6. Motor : Motors transmit kinetic energy to machine tools, providing powerful and surging power. Durable and long-lasting, with optional intelligent speed regulation function.
